Admin Console Overview

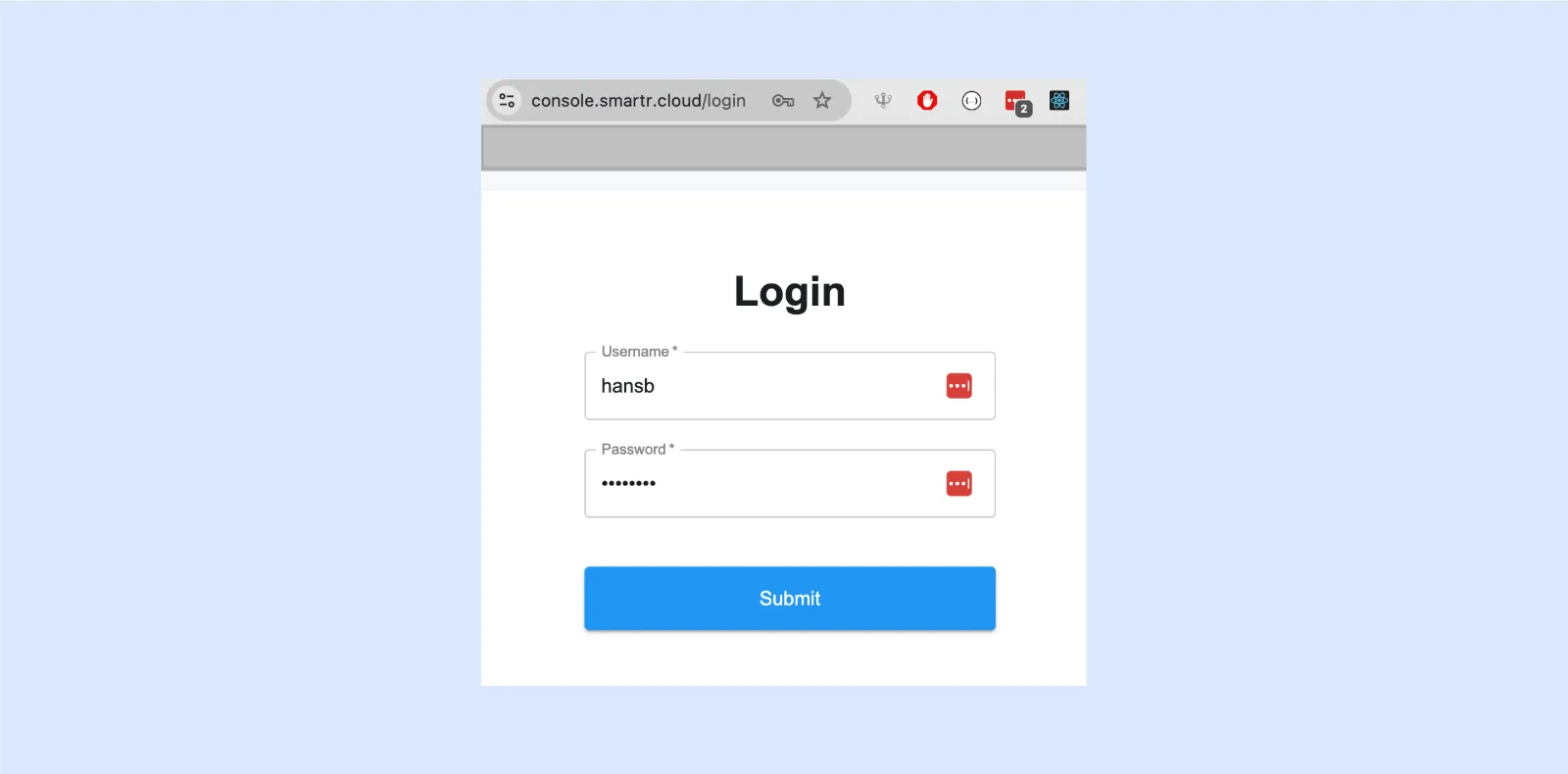

Console Login The Admin Console is designed to track payments, mobile money (MoMo) transactions, and customer (taxpayer) registrations.

To access it, open your browser and visit https://console.smartr.cloud. Log in using the credentials registered received when registering with TAPx.

User Roles

The console supports two types of users:

  • Customer Admin
  • Country Admin

Customer Admin

A Customer Admin can access all payments and registrations associated with their company.
For instance, a municipality admin can view all relevant transactions within their domain.

Customers using POSx can access all payment data generated by the app. However, registrations do not apply to them.

Country Admin

A Country Admin has full access to all payments, MoMo transactions, and registrations across the entire country.

Access rights for both roles are assigned by the Country Manager.

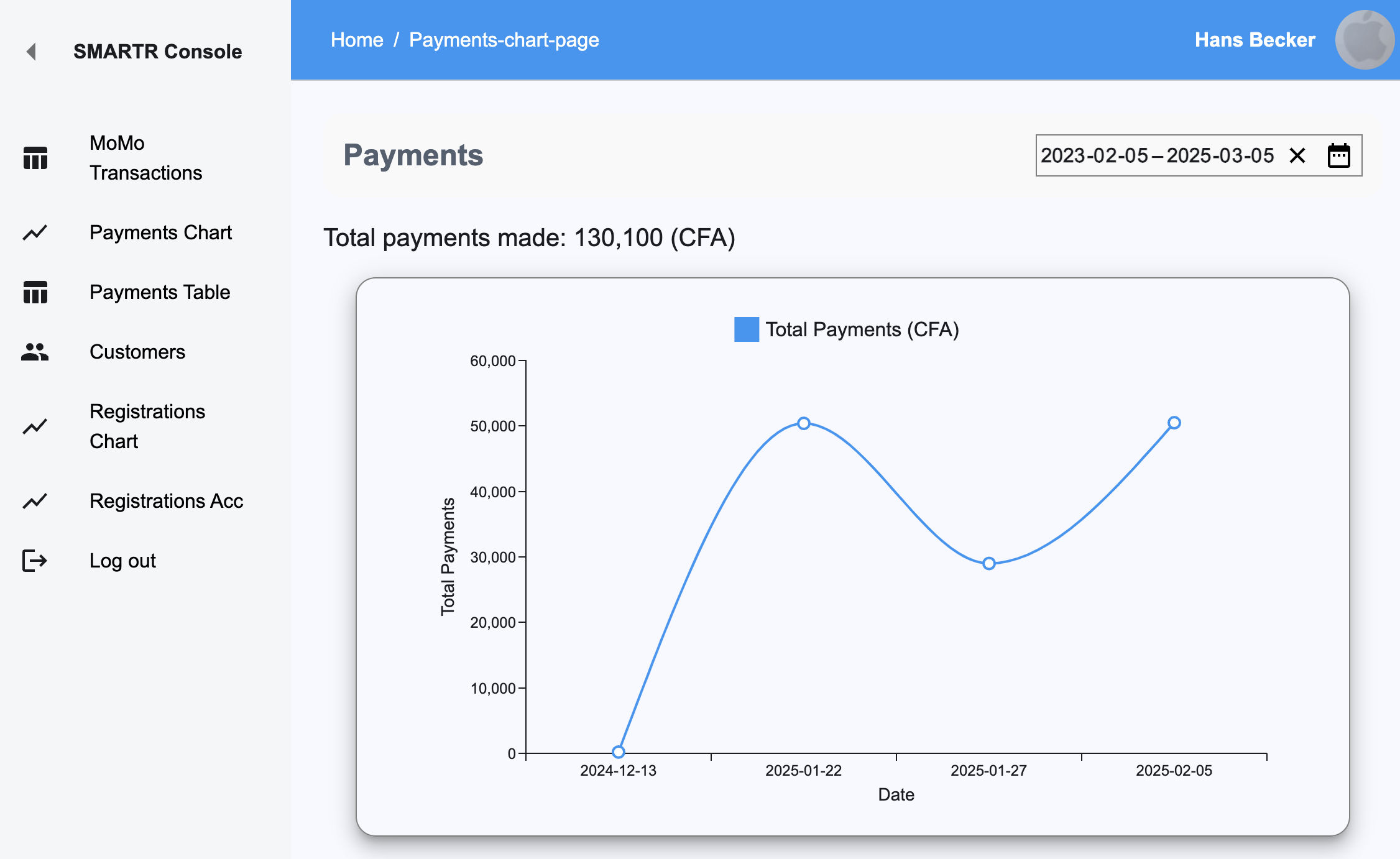

Payments Chart

The Payments Chart is the first page users see upon logging in.
Use the Date Range Picker in the upper-right corner to select a date range for analysis. By default, it displays data from the past month.

Payments Chart

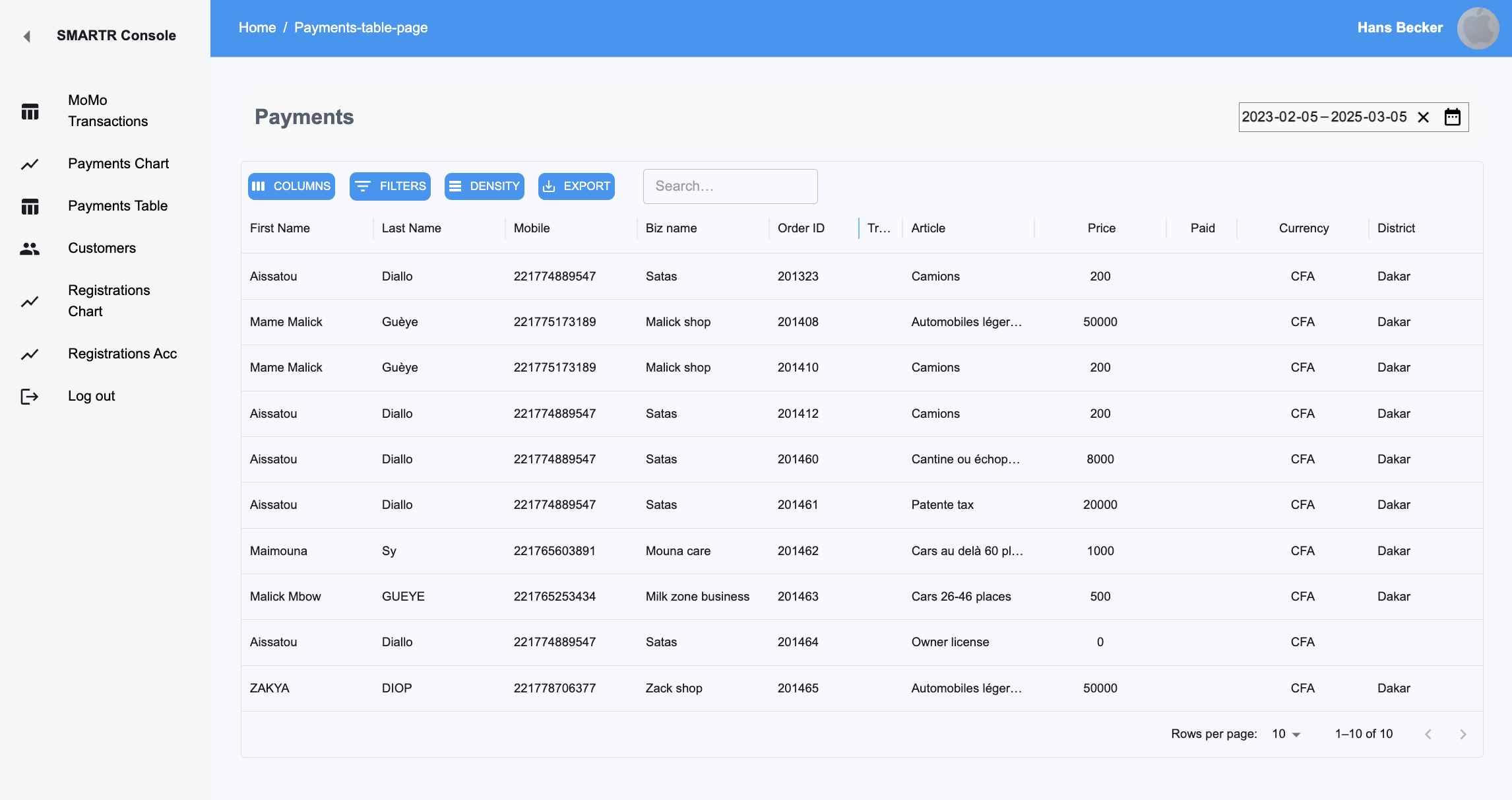

Payments Table

The Payments Table presents the same data displayed in the Payments Chart, but in tabular format.

Payments Table

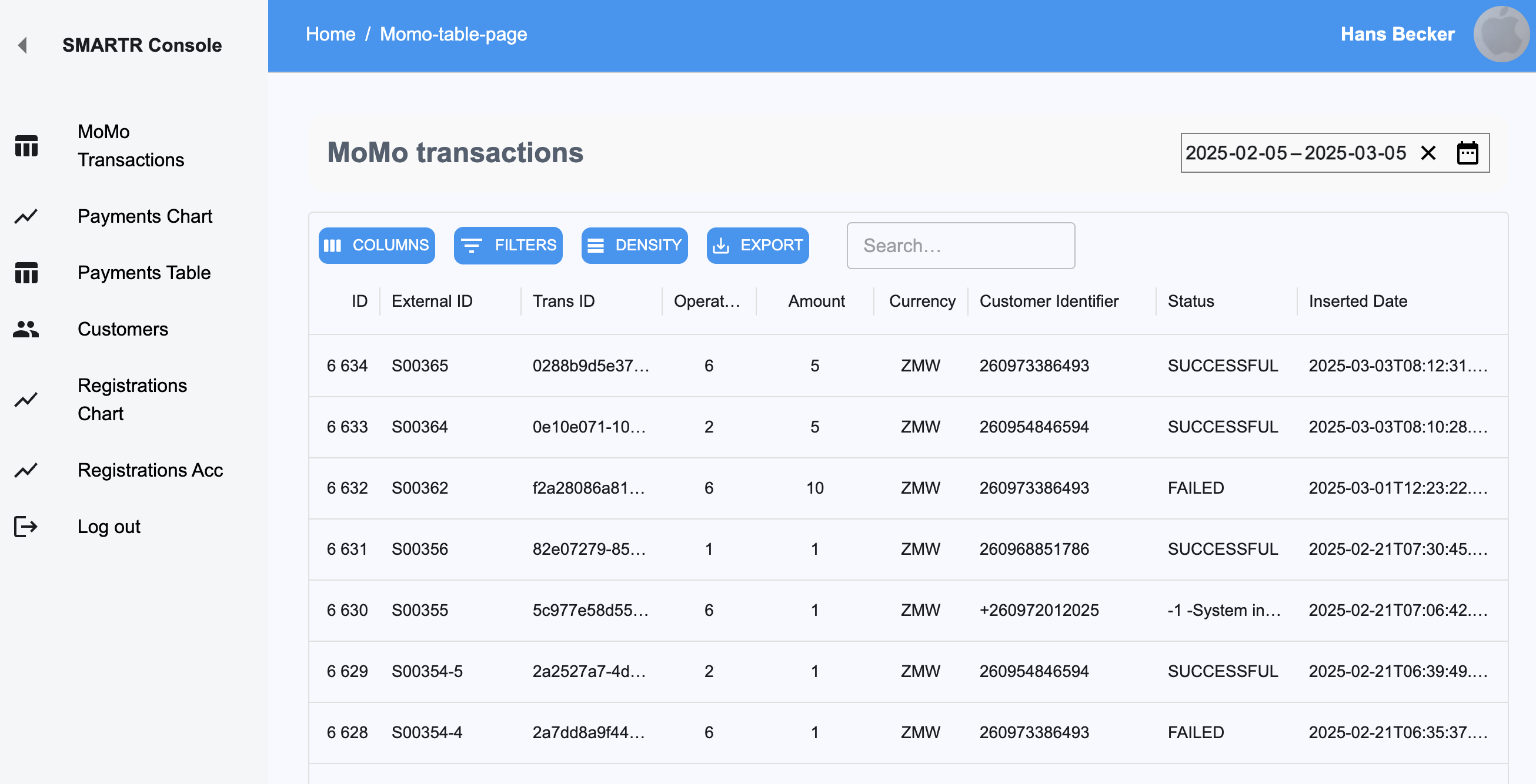

MoMo Table

This table tracks all mobile money and other payment provider transactions.
It contains all exchanged payment data, ensuring full transparency.

MoMo Table

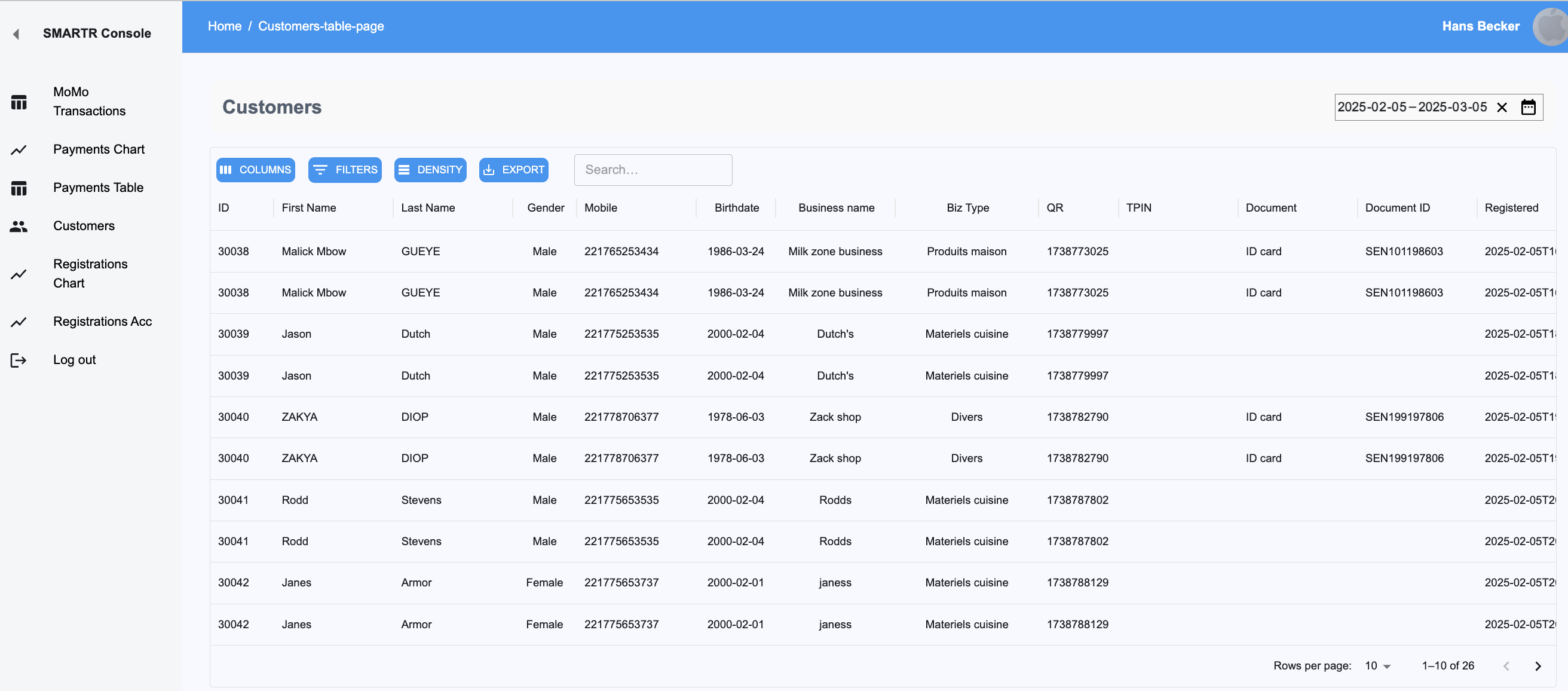

Customers Table

The Customers Table lists all registered customers.
Utilize column filters and the search box to quickly find relevant data.

Customers Table

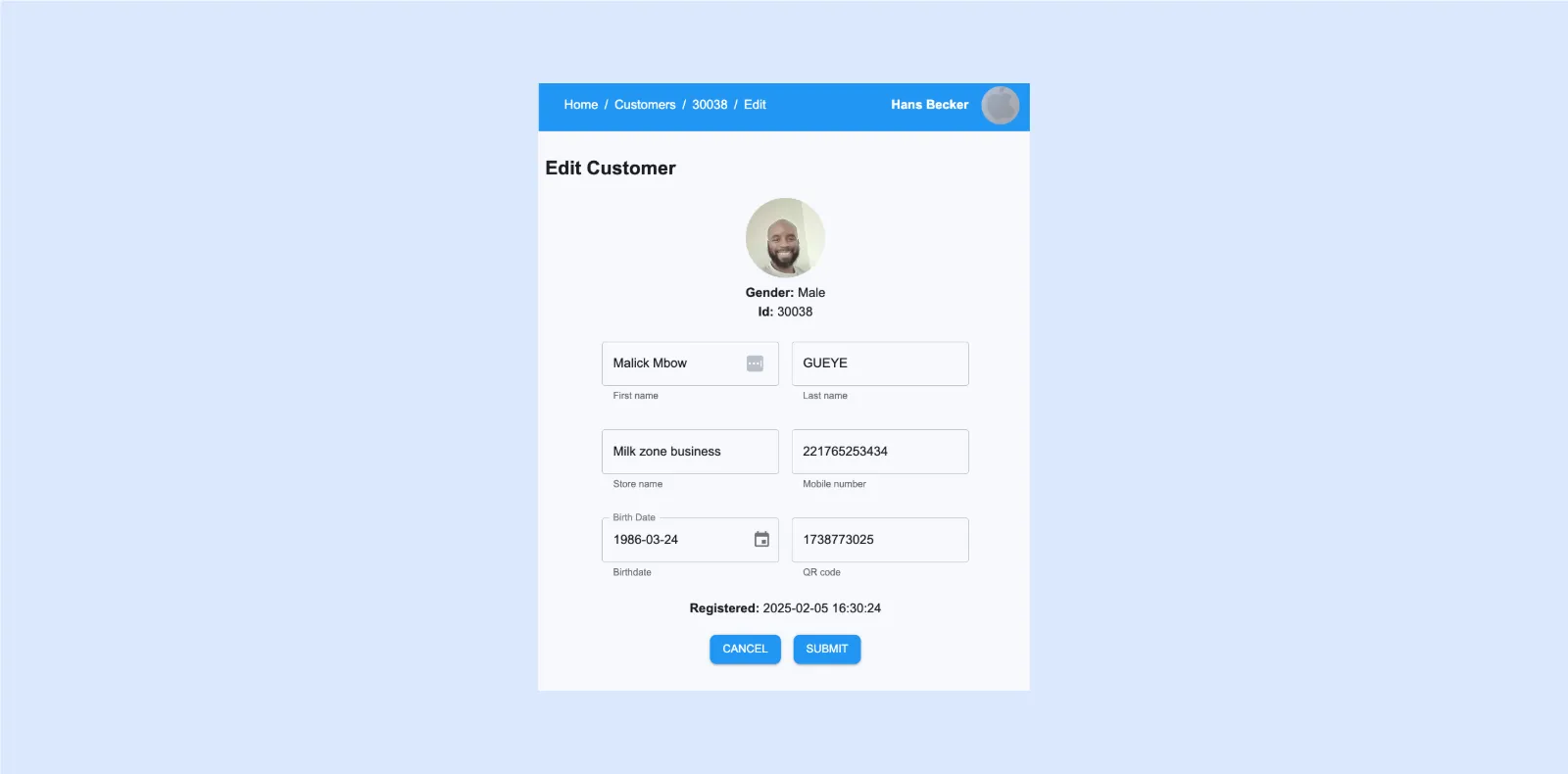

Customer Page

Double-clicking a customer row opens their profile page, displaying essential details.
Some fields are editable within this view.

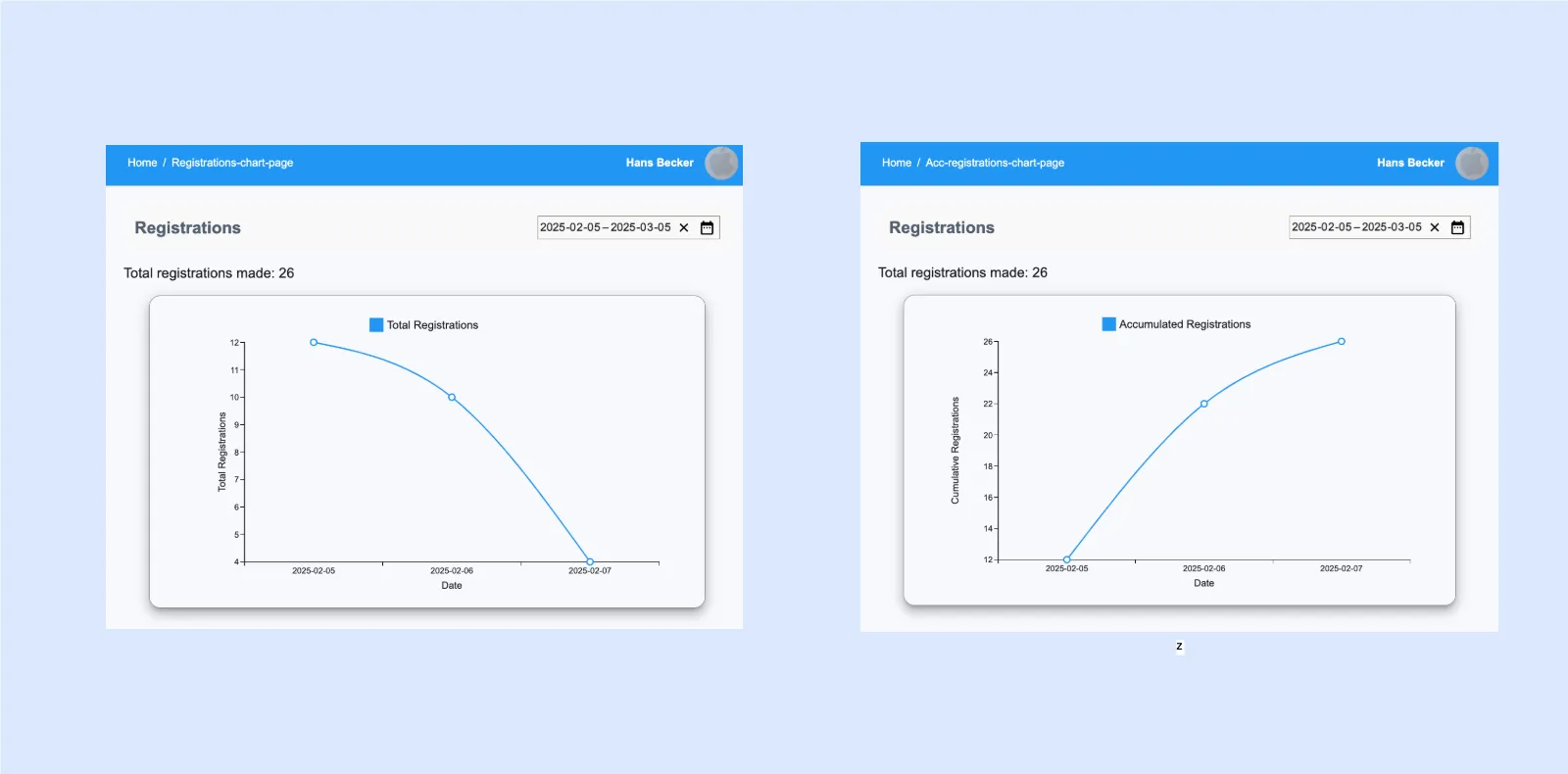

Registrations Charts

  • Left Chart: Shows the number of registered customers (taxpayers) per day.
  • Right Chart: Displays the cumulative number of registered customers over time.

Registrations Charts

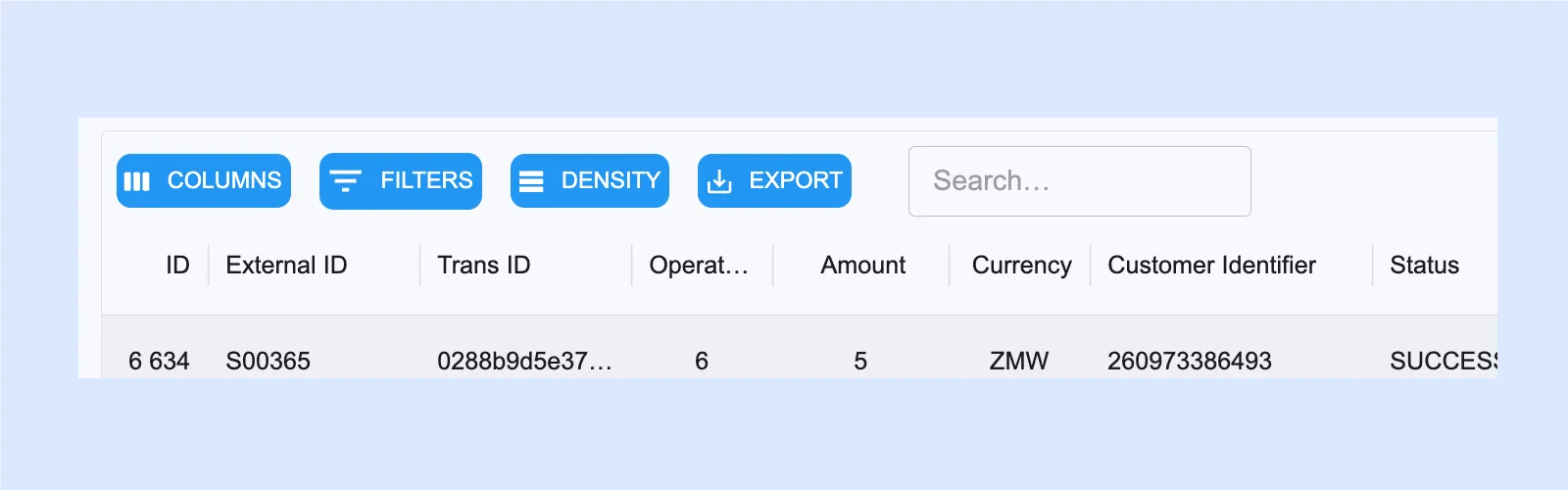

The Datagrid Toolbar

The tables in the console have a powerful toolbar for searching and filtering data.

Datagrid Toolbar

  • Columns Here you can define which columns should be visible in the datagrid.
  • Filters Here you can filter the data to be shown in the grid. For example, show only customers/taxpayers with a surname that starts with An.
  • Density Change the density of the rows in which the data is presented.
  • Export For exporting the data in the grid to a csv-file.
  • Search A searchbox for text search across all data in the grid.
